Features

EP783S - Powerful Performance…Simple Installation…Brighter Projection
  • High brightness projector, astonishing 5000 ANSI Lumens – Native XGA
  • Easy installation using lens shift (V&H) and centre lens design
  • Optional lenses for a range of room applications
  • Cable free presenting – optional wireless module
  • Networking – RJ45 control and monitoring
  • Virtually no maintenance - filter-free design
The Optoma EP783S has almost limitless install possibilities, its combination of high performance and brightness; means it achieves perfect images from distance. Using centre lens design, motorized lens shift and optional additional lenses, the flexible and powerful EP783S is a truly versatile install solution. Boasting an astounding 5000 ANSI Lumens, perfect for conferencing facilities, large auditoriums, halls and bars, its true brilliance must be experienced. Meeting the highest standards in installation projectors, the EP783S creates seamless, smooth and radiantly bright corporate presentations, videos and movies.

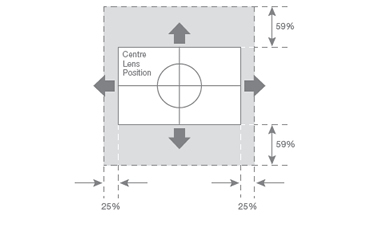

Lens Shift

The EP783S meets a variety of installation challenges that come with large halls, conferencing facilities, auditoriums and bars. Motorised lens shift aligns the projected images centrally on screen and can be adjusted horizontally or vertically without moving the unit.

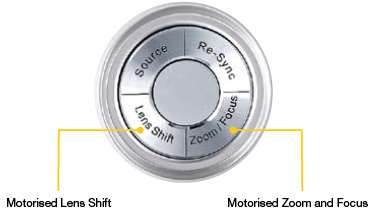

Motorised Zoom And Focus

Precise and accurate control to ensure images appear crystal clear

Projector Control

The extensive RS232 command set makes it simple and easy to control this projector with any control system


AMX Compatibility – Dynamic Discovery Protocol is incorporated into this projector. This feature allows for easy installation with AMX control systems.

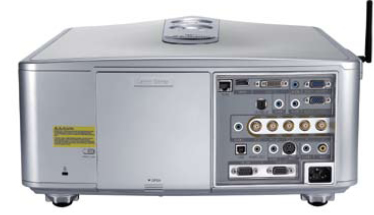

Extensive Connectivity


This native WXGA projector accepts a wide variety of computer and video input signals. Connectivity includes: HDMI, dual VGA–SCART and Component, S-Video, Composite, RS232 and RJ45.
Three audio inputs for individual PC and video connections enable the EW766 to function as an audio switcher and volume controller, thereby eliminating complicated and costly additional audio hardware and cabling.

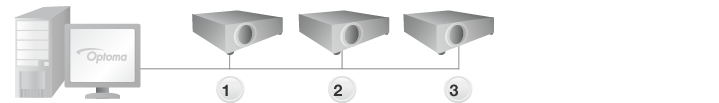

Projector Management

Networking
Projectors can be controlled and monitored over a network (LAN) using a web browser.
  • Manage up to 99 projectors at the same time (via master PC)
  • Control and alter the projector settings using a simple web browser page
  • Instant onscreen display of messages to all projectors
  • Set up email alerts for warning messages
Ideal for large installations in both in the educational and businessenvironments.

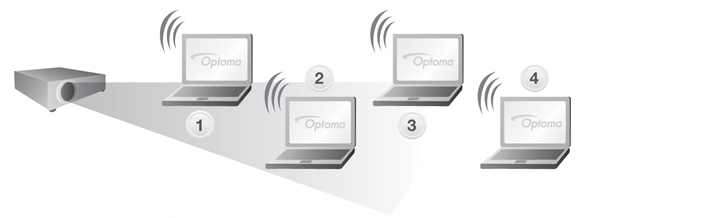

Wireless Presenting
Cable free presenting saves time and facilitates effortless switching between presentations from different sources. Simply plug in the Optoma wireless dongle through the VGA port, download the software and start presenting instantly.

Amazing Colour

Optoma guarantees images quality as new for 5 years. To retain image clarity Optoma projectors are designed with DLP technology, preventing degradation over time and content pixel performance. The Imager guarantee ensures a precise performance for a minimum of 5 years.

Optoma guarantees images quality as new for 5 years. To retain image clarity Optoma projectors are designed with DLP technology, preventing degradation over time and content pixel performance. The Imager guarantee ensures a precise performance for a minimum of 5 years.

BrilliantColor™ DLP projectors with BrilliantColor™ technology feature multi colour processing to produce stunning, vibrant colours on the screen. Unlike other technologies such as LCD which use just 3 primary colours to produce the image, DLP technology with BrilliantColor uses six separate colours.

Easy To Use

Quiet Operation
The EW674N features Optoma’s whisper-quiet design, highlyeffective in reducing audible noise levels to only 28dB.
Multi-Language Support
The on screen display (OSD) menu supports up to 18 Europeanlanguages including French, German, Polish, Dutch, Swedishand Arabic.
Easy Lamp Replacement
The lamp can easily be replaced in situ even if the projectoris ceiling mounted.

Security

Password Protected Operation
Acts as a theft deterrent and prevents unauthorised use.
Key Pad Lock
Enabled: unauthorised adjustments are prevented by ensuringthe projector can only be controlled via the remote control.

Energy Saving

Auto Power Off
If after a pre-determined time the projector does not receivea signal, it will turn itself off automatically, conservingpower and extending the life of the lamp.
Direct Power On
Start-up time is significantly reduced as standby mode ispassed over when the projector is turned on. The projectorwill power on when the power cable is inserted into an activepower outlet. This eliminates the need to use the ‘Power’button on the remote control or the projector keypad.
Signal Power On
The projector will power on when it receives a signal. Thiseliminates the need to use the "Power" button on the remotecontrol or the projector keypad.
Fast Switch On
Quickly displays an image after switching the projector on.
Low Power Standby Mode
Reduces energy consumption.

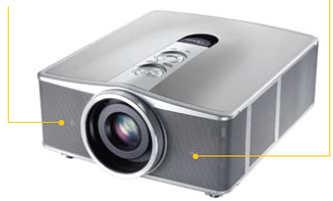

Built In Speakers

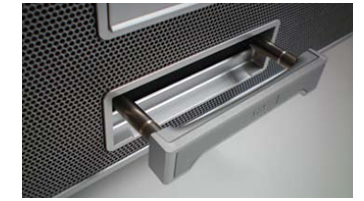

Carry Handle

Built-in 10W speakers for an integrated audio solution.  Built-in carry handle allows for easy transportation and additional holdwhen the projector is being installed..
*Optoma guarantees that in normal use, Optoma DLP® colour quality will be indistinguishable from when new. Please note that worn lamps will give slight variance. Exclusions: *(1) Guarantee is voided if the projector is subject to damage through mis-use.(2) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is particularly excessive (3) Guarantee will not apply if lamp brightness is below 50% due to wear or if the projector is not working due to other fault.*** Optoma guarantees that in normal use, the DLP® imager guarantee will retain quality for at least 5 years providing consistent pixel performance. Exclusions: (1) Guarantee is voided if the projector is subject to damage through mis-use. (2) Guarantee may be void in industrial or commercial entertainment environments where dust or smoke is particularly excessive.**Typical lamp life achieved through testing. Will vary according to operational use and environment conditions. Copyright © 2009, Optoma Europe Ltd. All other product names and company names used herein are for identifications purposes only and may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without notice. DLP®, BrilliantColor™ and the DLP logo are registered trademarks of Texas Instruments.
