NanoAll-in-one content playback, warping and edge blending solution

All-in-one content playback, warping and edge blending solution

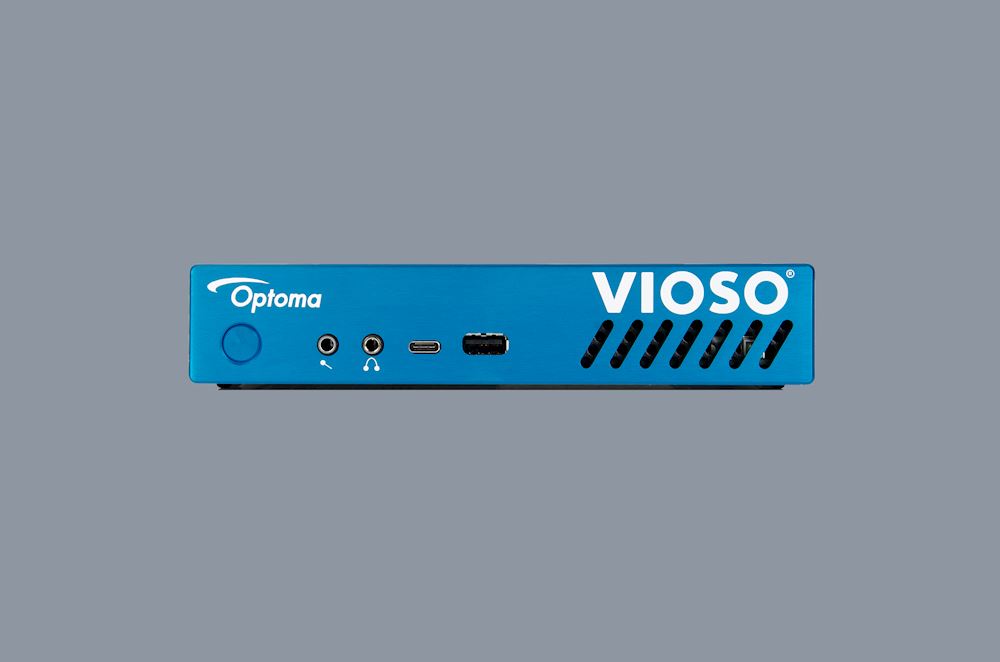

Powered by VIOSO, the market leaders in multi projector alignment solutions, the Optoma Nano is a simple to use all-in-one content playback, warping and edge blending solution.

The Nano is smaller footprint than an A4 sheet of paper, but incorporates a highly powerful feature set including Intel i5 processor and NVIDIA QUADRO graphics. It is ideal for a multi-projector installation where powerful edge-blending, warping and content playback are required from one compact package.

The Optoma Nano supports the use of a simple USB camera for auto-blending of projectors using the famous patented VIOSO auto-alignment technology. For more advanced setups, IP network cameras that provide greater flexibility are optionally available.

Features

All in one

Content playback, warping and edge blending from one box

Compact and powerful

Smaller footprint than an A4 sheet of paper

Multi-channel

4 video outputs for connection of display devices

Simple to use

Supports USB camera for auto-blending of projectors

Powered by VIOSO

Powered by VIOSO the market leaders in multi projector alignment solutions the Optoma Nano is a simple to use all-in-one content playback, warping and edge blending solution.

Powered by VIOSO
Patented projector auto-alignment & calibration

Patented projector auto-alignment & calibration

Using VIOSO patented auto alignment technology - you will be able to set up even the most complex projection scenarios within minutes. Support is included for flat screens, domes, curved screens and irregular surfaces. Auto alignment and calibration can be acheived using a simple USB webcam, but fisheye and widescreen networked cameras for more complex installations are also supported.

Integrated content playback

The built-in content playback suite supports over 50 different video & image formats, including high-res HEVC and a Playlist and watchdog function keep you in control of your playback at all times.

Integrated content playback
Multichannel display output

Multichannel display output

Optoma Nano features 4x Mini DisplayPort outputs and also includes 4x Mini DisplayPort to HDMI adapters for connection to HDMI equipped display devices. An HDMI and standard DisplayPort connector are included for monitoring and setup purposes.

Various camera options supported

Depending on the installation environment different camera models may be required for successful auto calibration completion. Optoma Nano supports a variety of USB webcams or industrial network cameras with different lens options. Contact us for recommendations on which camera is suitable for your project.

Various camera options supported
Masking and colour correction

Masking and colour correction

Optoma Nano features advanced projector masking and colour correction for the perfect image.

Network control

Content on Optoma Nano can be controlled using TCP or UDP commands or Via an HTTP web interface to perfectly integrate within your project.

Network control

General

Dimensions (W x D x H) mm
180.3 x 182.9 x 35.6
Power supply
100~240v 1.5A 50~60hz
Connections
Inputs 1 x Mic 3.5mm
Outputs 4 x Mini DisplayPort, 1 x DisplayPort, 1 x HDMI, 1 x Audio 3.5mm
Control 1 x RJ45, 1 x USB-C, 5 x USB-A
In the box
Optoma Nano, Carry case, USB mouse, Power Adapter, 4x Mini DisplayPort to HDMI adapter
Flight case dimensions
302 x 301 x 120mm

System

Processor
Intel Core i5 (8. Gen.) 8500T 2.1 GHz, 6 cores
Memory
8GB DDR4 2400 MHz
Operating system
Windows 10 Pro 64
GPU
Intel UHD Graphics 630 (for monitoring) NVIDIA Quadro P620 (for projectors)
Storage
256 GB M.2-SSD, PCIe
Security
Kensington Lock
